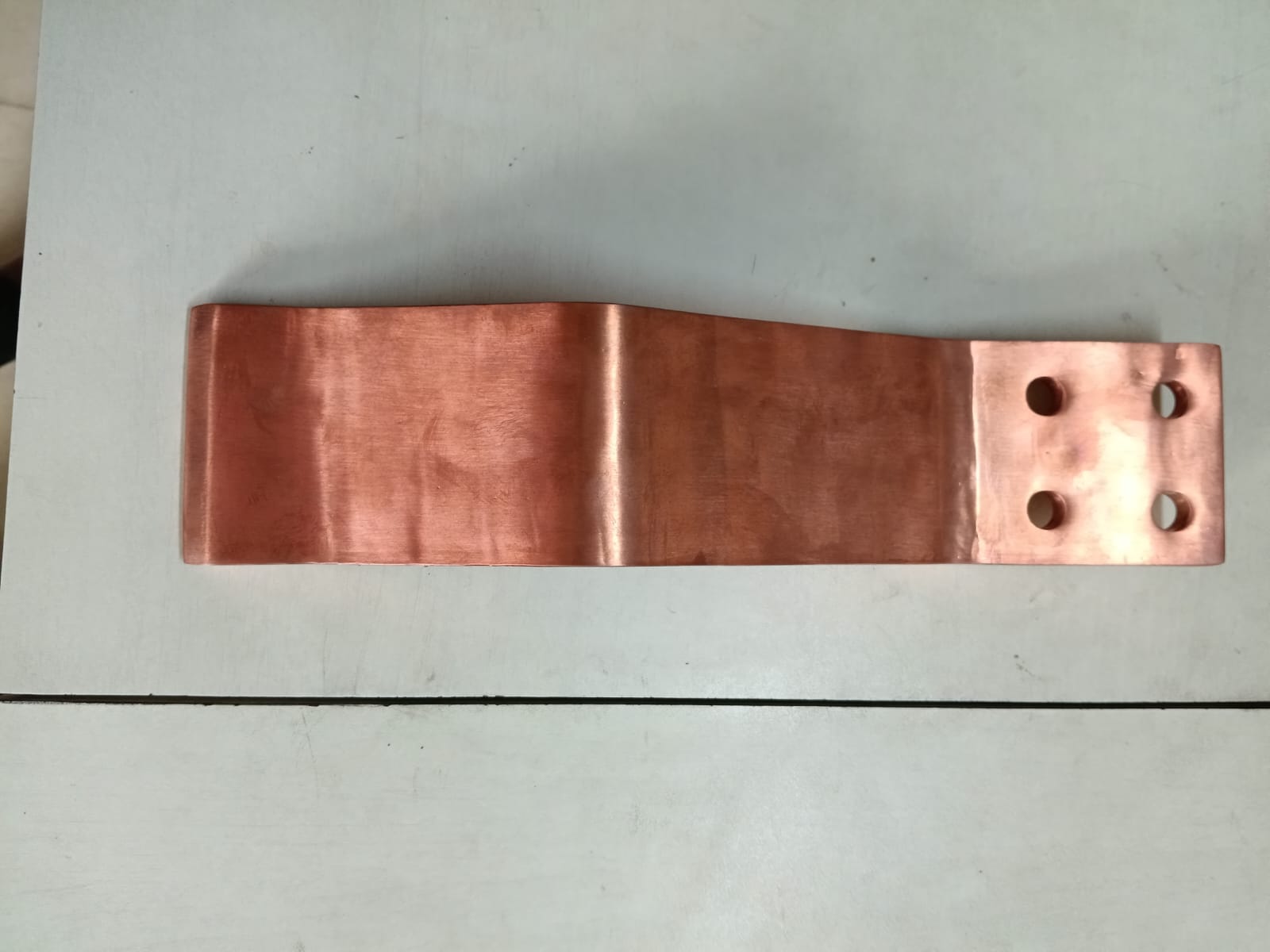

Industrial GradeCopper Laminated Expansion Connectors
Advanced expansion connectors for industrial applications requiring thermal flexibility and high current handling.
High Performance
Quality Assured
Customizable
Technical Data
Laminated Sheets
Material:Annealed Cu-ETP sheets
Sheet Thickness:0.05mm - 0.30mm
Current Capacity:Up to 5000 Amps
Temperature Range:-50°C to +200°C
Expansion Range:Up to 50mm
Contact Area
- Pressed copper contact areas
- Tin or silver plating available on request
Insulation
Protective sleeves or heat shrinking available on request.
Features
Excellent thermal expansion compensation
High current carrying capacity
Corrosion resistant
Customizable dimensions and shapes
Durable laminated construction
Easy integration
Typical Applications
Transformers
Generators
Heavy Machinery
Power Plants
Switchgear Systems
Industrial Equipment
Custom Solutions
Need a custom solution? Our engineering team can design connectors to meet your specific requirements.
