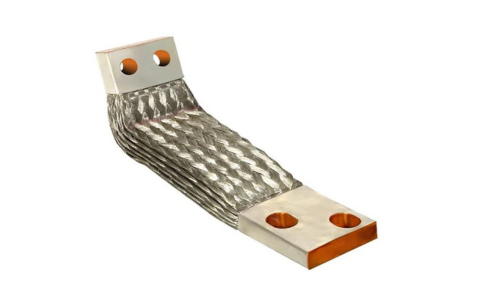

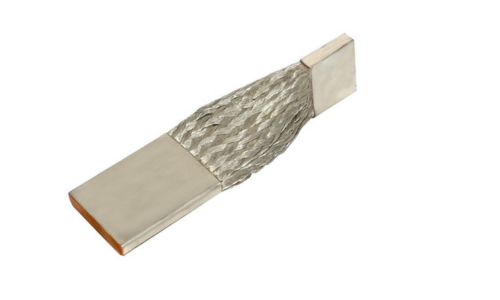

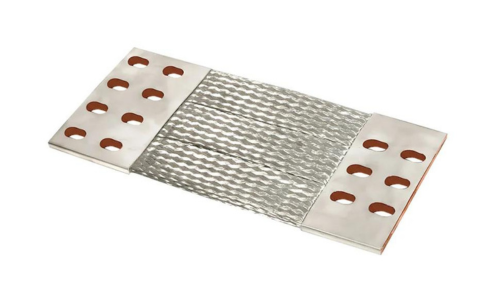

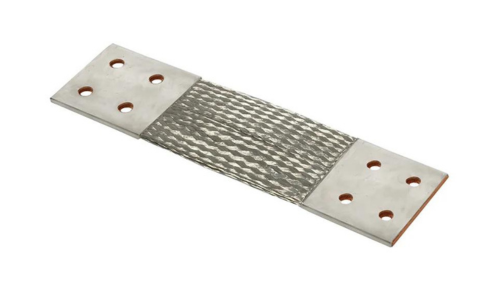

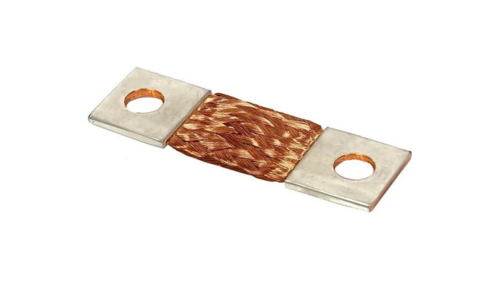

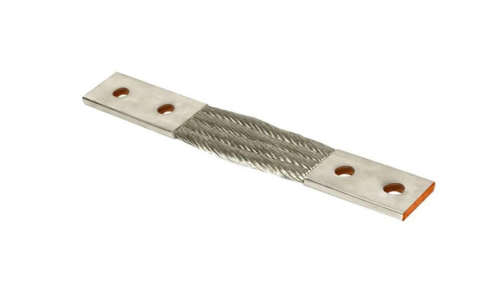

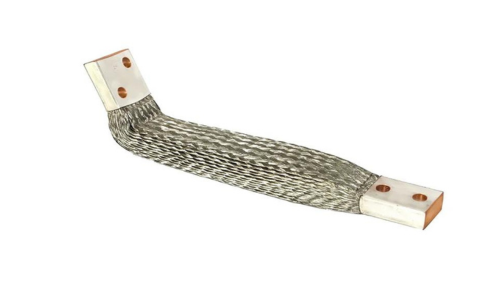

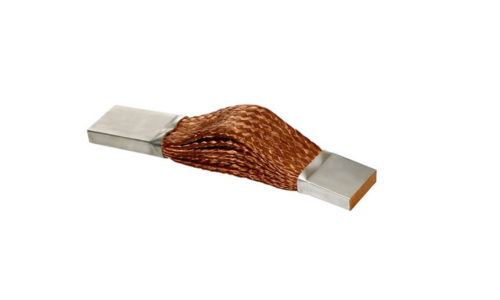

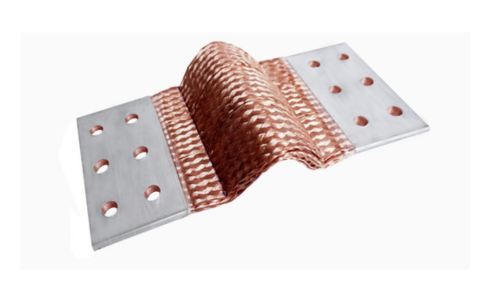

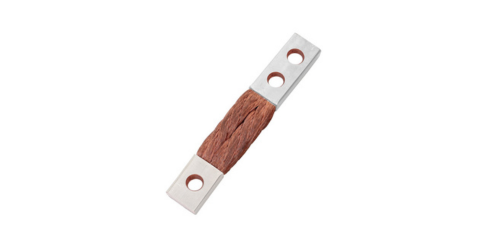

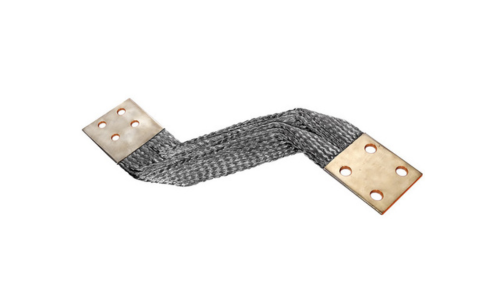

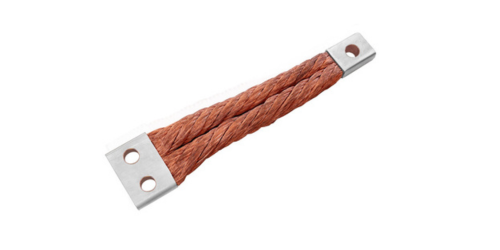

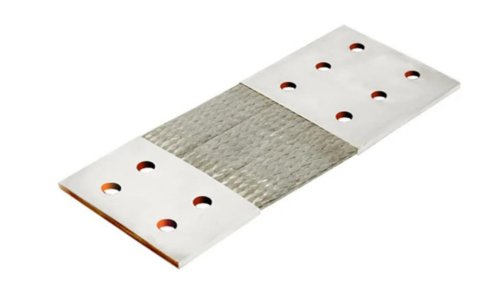

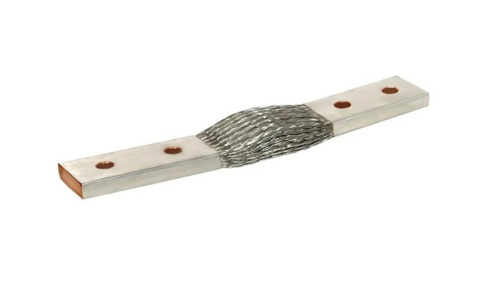

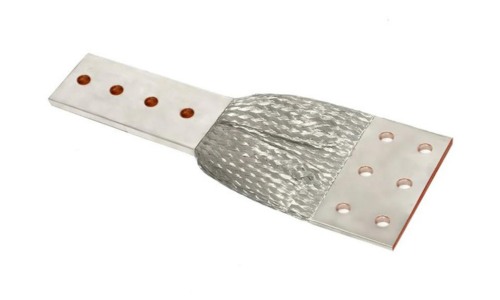

Copper Braided Flexible Connectors

SK Electro Control manufactures a wide range of flexible & highly flexible braided connectors and earthing tapes for transmission of lower to higher amperage electrical currents.

High Performance

Quality Assured

Customizable

Technical Data

Braids

Material:Annealed Cu-ETP wires

Wire Coating:Tin or silver coated on request

Wire Diameter:0.07mm - 0.20mm

Current Capacity:10 Amps to 6300 Amps

Temperature Range:-40°C to +180°C

Voltage Rating:Up to 1000V AC/DC

Contact Area

Seamless Cu - ETP tube
Contact area uncoated tin, hot dipped tin & silver coated on request

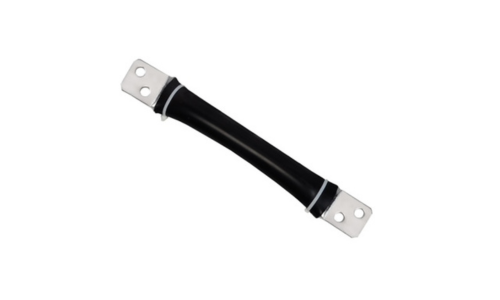

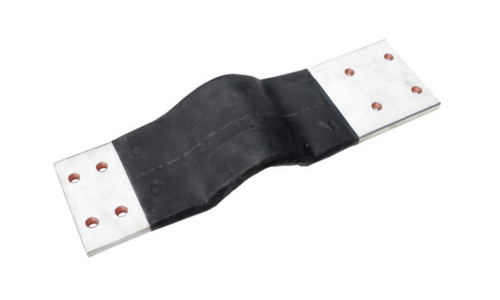

Insulation

Heat Shrinking tubes, silicon, PVC on request.

Features

Maximum ampacity with flexible design

Excellent electrical conductivity

Corrosion resistant materials

Customizable dimensions

High mechanical strength

Easy installation

Typical Applications

Switchgear Panels

Power Generation & Transmission

Rail Boards & Defence

Electrolytic Process

Welding Industry

Electro Plating Industry

Custom Solutions

Need a custom solution? Our engineering team can design connectors to meet your specific requirements.
